Our Solutions to your Challenges

In the Solutions section on our website you can find information about our products and services at any time. Whether as a researcher, clinician or in industry – we offer you innovative solutions to your challenges.

In addition to the information about our products and solutions, you can now also download datasheets of our different technologies – so you have all important information at a glance!
Visit our CorTec Business page for deeper insights into our technologies.

Via the following links you will directly reach the download page for each datasheet:

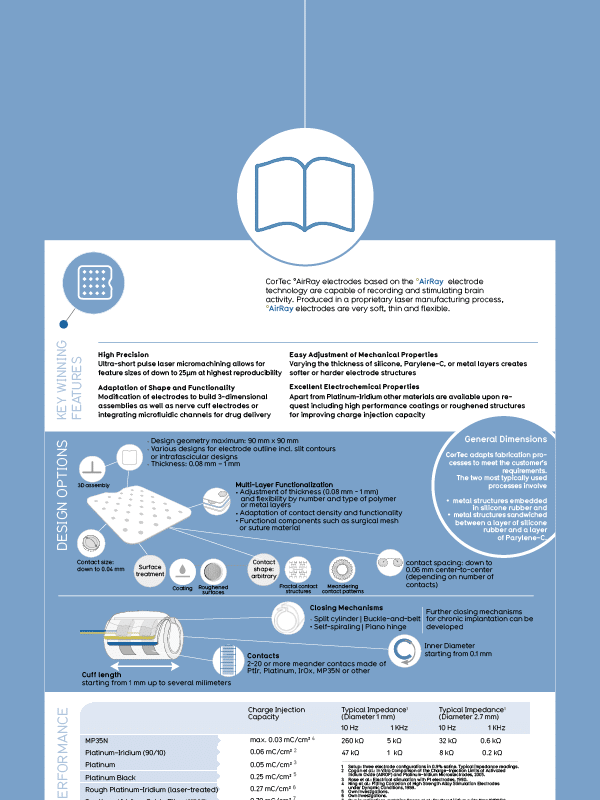

Datasheet for °AirRay Electrode Technology

Datasheet for Hermetic Encapsulation

Datasheet for Interconnection

Datasheet for Electronics

Datasheet for Software

Further readings in Technology:
No data was found

Contact

Do you have any questions regarding our Company, our Products or our Technology?
We are happy to receive your message!

Get a Quote

We’re happy to help you realize your next project. Whether it is a complete implantable system design, an electrode or another component.

Please fill out the form below and our sales team will be in contact with you shortly.

SPECIFICATIONS

FEATURE

Recording channels

Sampling rate

Sampling dynamic range

High pass filter cut-off

Low pass filter cut-off

Amplifier band pass gain

Band pass roll-off

Reference


Stimulation

Stimulation channels

Current

Current source

Pulse width

Power supply

Wireless data transmission

Closed Loop latency

VALUE

32

1 kHz

16 bit (74 nV smallest increment)

ca. 2 Hz

325 Hz

Adjustable: 100-750

20 dB/dec

Any (subset) of the recording channels selectable by software or one dedicated hard-wired additional contact

Current-controlled, biphasic, rectangular, asymmetric stimulus pulses (cathodic amplitude with pulse width followed by an anodic counter pulse of 1/4x amplitude and 4x pulse width)

 32

Max. -6 mA / +1.5 mA (24 µA increments) within

 compliance voltage range of -11 V to +5 V

Can be directed to any of the 32 electrode contacts

Negative phase: 10 µs – 2,500 µs

Wireless inductive, 120-140 kHz

Bi-directional, radio frequency in 2400-2483.5 MHz band ≤ 40 ms
