°AirRay Cuff Electrodes

Cuff electrodes are designed to provide an electrical interface to the peripheral nervous system. CorTec has developed several design families to meet the needs of the individual applications, which strongly depend on implantation site (e.g. nerve size) and character of the interface:

• Neural signal recording

• Electrical stimulation of nerves

• Blocking of propagation of neural signals

Tunnel Cuff

  • for nerve diameters 0.15-6.0 mm
  • easy to handle, double sealing lips
  • flexible meander-ring structured contacts

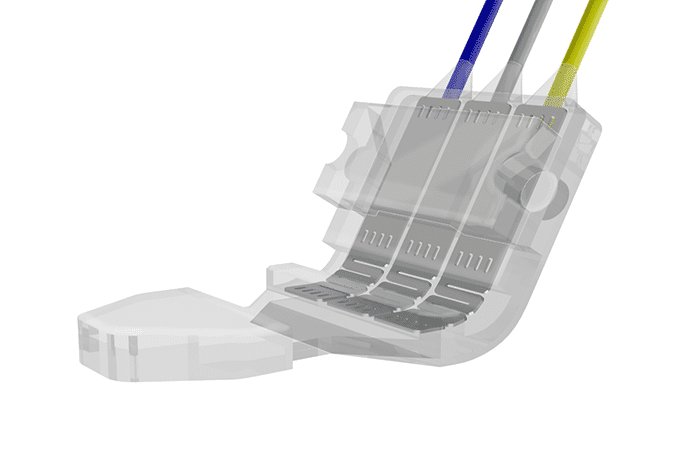

Sling Cuff

  • for nerve diameters 0.1-0.5 mm
  • very small nerves
  • buckle-and-belt closure

Spiral Cuff

  • for nerve diameters 1.5-6.0 mm
  • self-adjusting diameter
  • ideal for chronic use
  • accommodates nerve swelling to some extent

Helix Cuff

  • for nerve diamters 1.5-6.0 mm
  • self-adjusting diameter
  • ideal for chronic use
  • accommodates nerve swelling to some extent

White Paper on Nerve Cuff Electrodes

Suture Sleeves

Designed to anchor the implanted electrode wires within surrounding tissue. Key benefits of our Suture Sleeves include:

  • Secure Ligature: Prevents electrode movement and displacement
  • Radio-opaque: Clearly visible in all kinds of X-rays
  • Biocompatible: Safe for use in biological environments

Custom Design

Thank you for your interest in a custom design from CorTec.

Please fill out the form below and our team from sales and engineering will be in contact with you shortly.

Get a Quote

We’re happy to help you realize your next project. Whether it is a complete implantable system design, an electrode or another component.

Please fill out the form below and our sales team will be in contact with you shortly.

SPECIFICATIONS

FEATURE

Recording channels

Sampling rate

Sampling dynamic range

High pass filter cut-off

Low pass filter cut-off

Amplifier band pass gain

Band pass roll-off

Reference


Stimulation

Stimulation channels

Current

Current source

Pulse width

Power supply

Wireless data transmission

Closed Loop latency

VALUE

32

1 kHz

16 bit (74 nV smallest increment)

ca. 2 Hz

325 Hz

Adjustable: 100-750

20 dB/dec

Any (subset) of the recording channels selectable by software or one dedicated hard-wired additional contact

Current-controlled, biphasic, rectangular, asymmetric stimulus pulses (cathodic amplitude with pulse width followed by an anodic counter pulse of 1/4x amplitude and 4x pulse width)

 32

Max. -6 mA / +1.5 mA (24 µA increments) within

 compliance voltage range of -11 V to +5 V

Can be directed to any of the 32 electrode contacts

Negative phase: 10 µs – 2,500 µs

Wireless inductive, 120-140 kHz

Bi-directional, radio frequency in 2400-2483.5 MHz band ≤ 40 ms
