Cables and Connectors

Our interconnection solutions for active implantable devices combine innovation and precision to meet the unique demands of the medical and BCI industries. From custom-designed connectors to durable cables and industry-standard connectors, our comprehensive offerings ensure reliable, high-performance connectivity for a wide range of applications. With a focus on quality and compatibility, our interconnection services support the seamless integration of active implants, enhancing device reliability and patient outcomes.

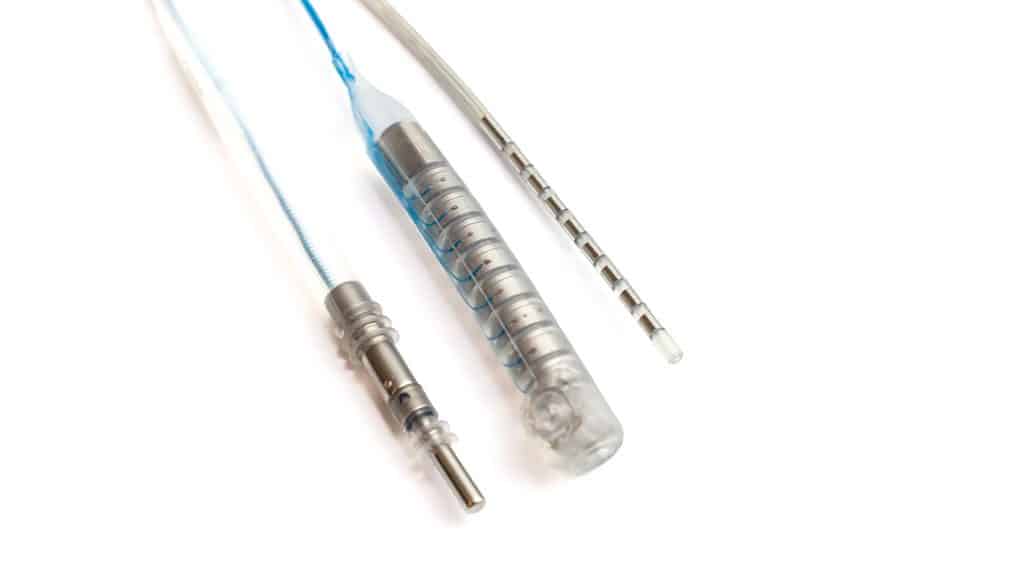

CorTec Inline Connector

The full implantable connector allows interconnection to common 8 channel DBS leads (e.g. Abbott, Medtro-nic, Boston Scientific) or other electrodes with proximal in-line connection.

Our in-line connector technology is based on the Bal Seal Sygnus system and uses PtIr contacts and medical silicone seals.

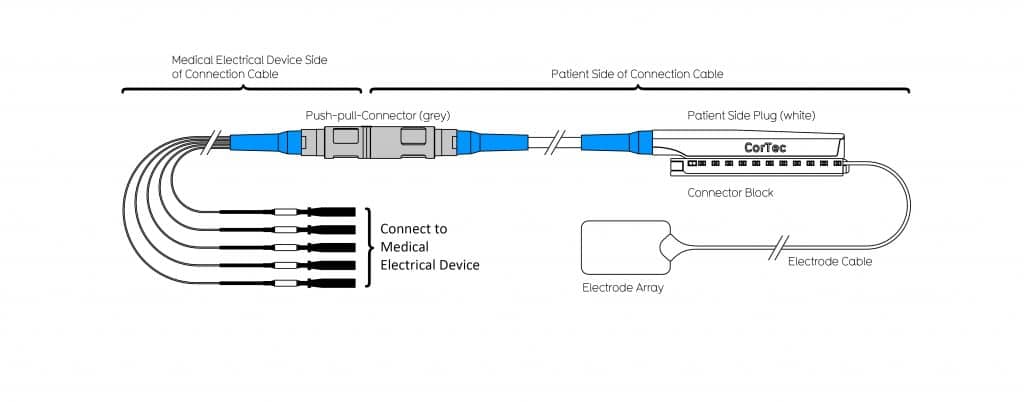

Cables

We offer integration of high-quality standard cables, including Straight Wire and Coiled Cables with solid wires encased in durable silicone tubing, engineered to meet the rigorous demands of active implantable applications.

Our cable solutions provide robust flexibility and reliability for medical device connectivity.

Standard Connectors

Our standard connector solutions include widely used types such as IS-1 and Omnetics, expertly integrated for seamless connection with active implantable devices.

Choose from a range of high-performance connectors to ensure dependable, long-lasting interconnections in any application

Our new CorTec Business Catalogue

Get a Quote

We’re happy to help you realize your next project. Whether it is a complete implantable system design, an electrode or another component.

Please fill out the form below and our sales team will be in contact with you shortly.

SPECIFICATIONS

FEATURE

Recording channels

Sampling rate

Sampling dynamic range

High pass filter cut-off

Low pass filter cut-off

Amplifier band pass gain

Band pass roll-off

Reference


Stimulation

Stimulation channels

Current

Current source

Pulse width

Power supply

Wireless data transmission

Closed Loop latency

VALUE

32

1 kHz

16 bit (74 nV smallest increment)

ca. 2 Hz

325 Hz

Adjustable: 100-750

20 dB/dec

Any (subset) of the recording channels selectable by software or one dedicated hard-wired additional contact

Current-controlled, biphasic, rectangular, asymmetric stimulus pulses (cathodic amplitude with pulse width followed by an anodic counter pulse of 1/4x amplitude and 4x pulse width)

 32

Max. -6 mA / +1.5 mA (24 µA increments) within

 compliance voltage range of -11 V to +5 V

Can be directed to any of the 32 electrode contacts

Negative phase: 10 µs – 2,500 µs

Wireless inductive, 120-140 kHz

Bi-directional, radio frequency in 2400-2483.5 MHz band ≤ 40 ms
